Brewtools Troll Brewing Crane

• The perfect match for the Brewtools Troll Brew Table
• 220 lb lifting capacity
• Height adjustable (6 levels)
• Flexible lifting bracket

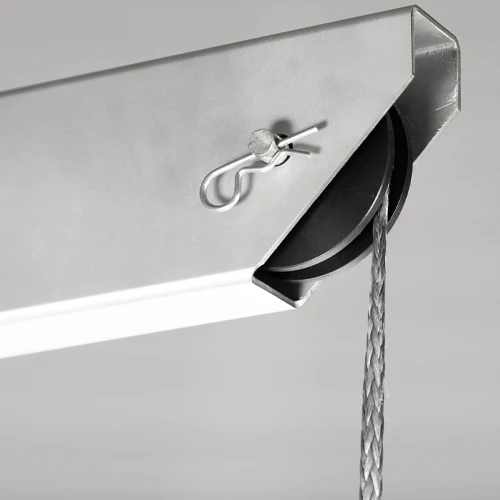

• Flexible pulley placement on boom
• PureBlast™ surface

The Brew Crane allows you to easily lift and swing the malt pipe of the Brewtools Brewing System. The Troll Table comes ready for the crane to be installed. The crane can lift 220 lbs. A universal lifting bracket is included.

It is possible to use the crane without the Troll Brew Tables at your own risk. The hole needed for the bushings is 64mm.

Specifications:

• Ceiling height requirement: 72.6" to 92.3"
  • Height requirement is based on model of brewing system you have
  • For more detailed specs, please follow this link to Brewtools Docs
• Lifting height above table top: 39.75" to 59.5"
• Weight assembled: 29 lbs
• Material: AISI 304

In the box:

• Crane, 3parts
• Lifting bracket
• Bottom support
• Winch bracket
• Winch
• Support leg with adjustable foot
• (2) S-hooks
• Nylon pulleys and bushings
• Tools and bolts for assembly
• Brewtools Troll Table sold separately

Note: The maximum weight must never been exceeded. Crane must only be used with support legs or a low frame bolted to the side you lift towards.

For User Manuals and support, please follow this link to Brewtools Docs.
