The Story

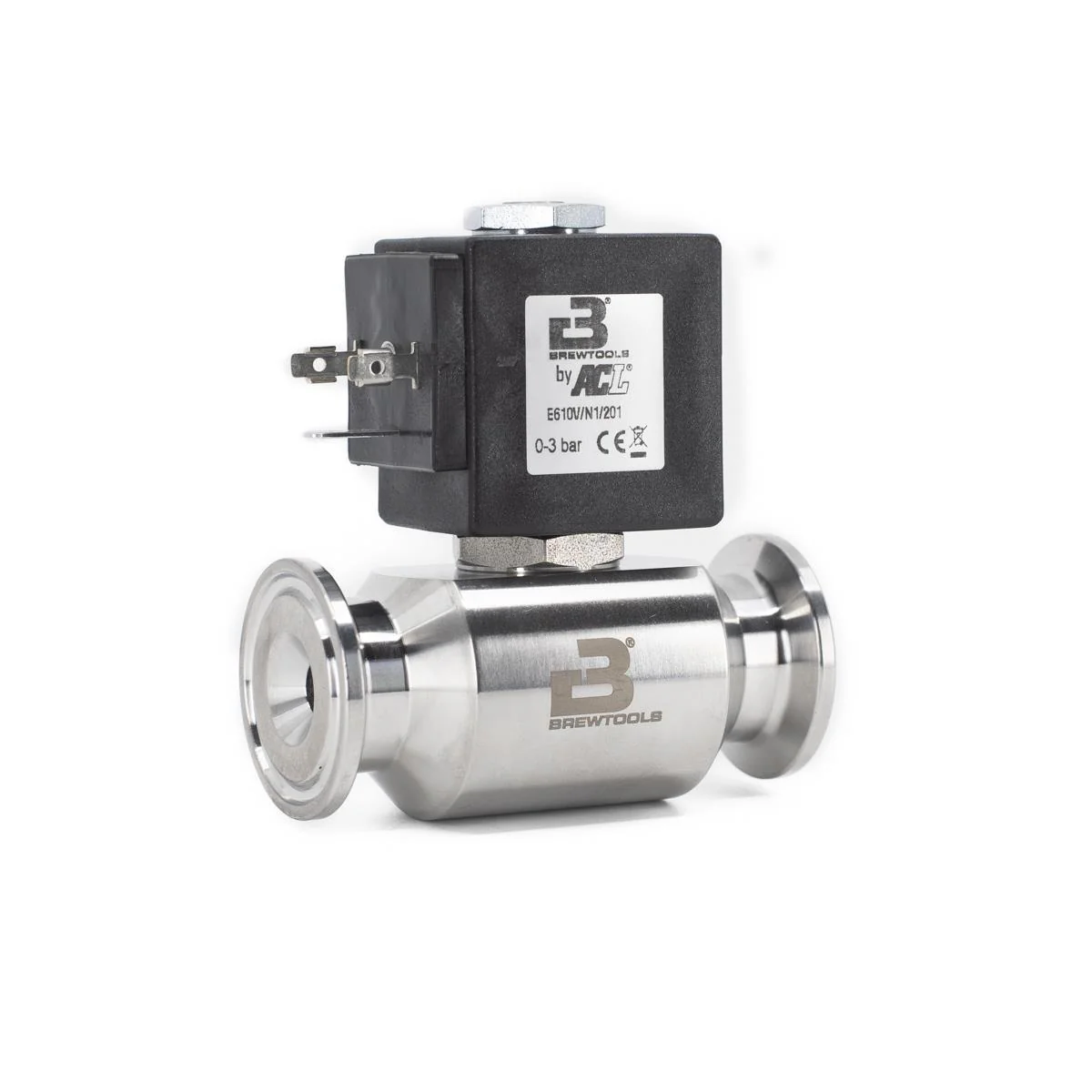

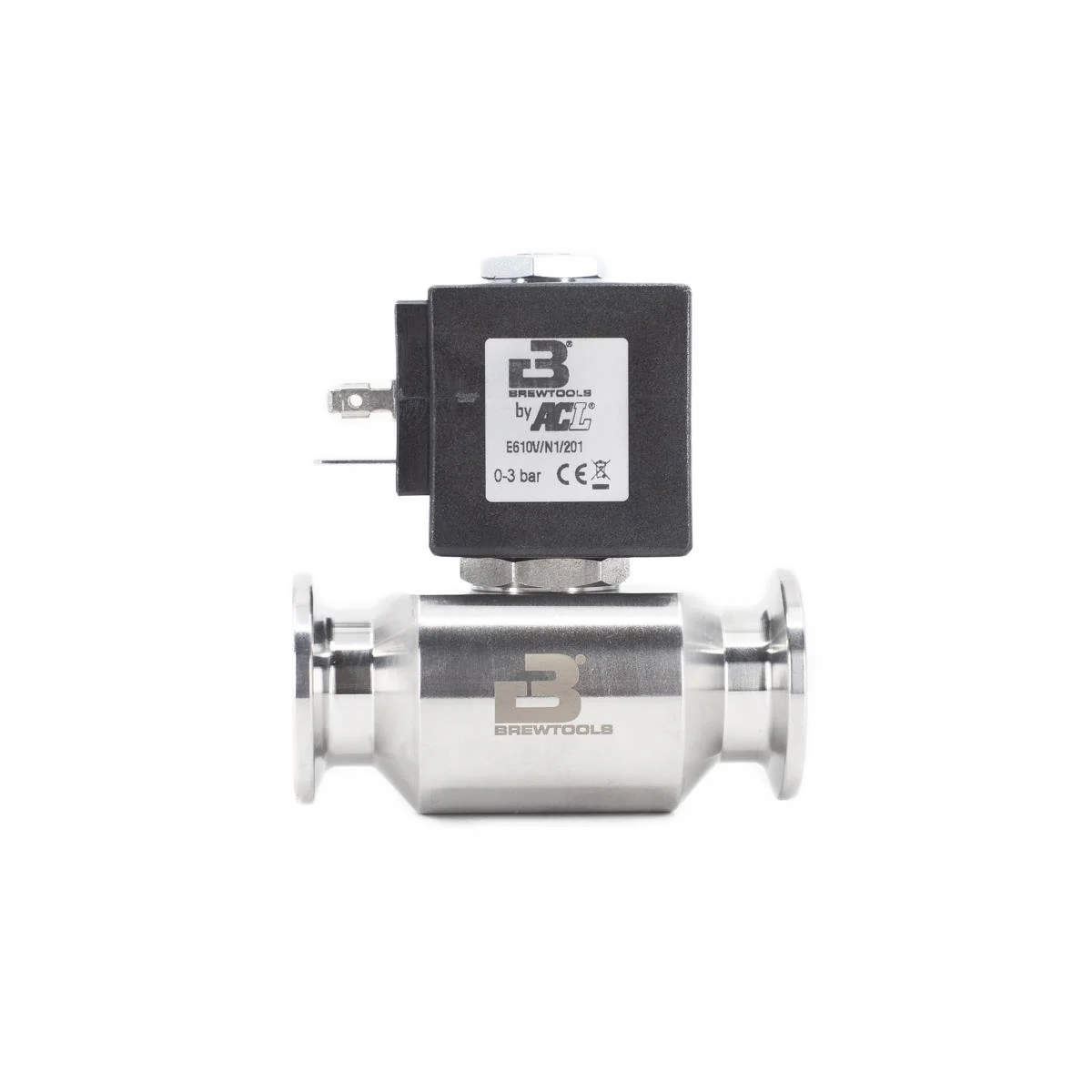

Solenoid valve made from stainless steel. Designed for glycol, water and air/co2. T.C. 34mm ports in both ends for maximum flexibility. Coil and plunger Italian-made by ACL. The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Normally used with T.C. 34mm to 3/8" NPT threaded adapter and leak-free quick connectors on one or both sides depending on setup.
Specifications:
- Ports: TC34mm / TC34mm
- Operation: NC (normally closed)
- Power supply: DC24V, 10W
- Orifice: Ø4.5mm
- Pressure rating: Max 3 bar / 43 PSI
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Solenoid valve made from stainless steel. Designed for glycol, water and air/co2. T.C. 34mm ports in both ends for maximum flexibility. Coil and plunger Italian-made by ACL. The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Normally used with T.C. 34mm to 3/8" NPT threaded adapter and leak-free quick connectors on one or both sides depending on setup.
Specifications:
- Ports: TC34mm / TC34mm
- Operation: NC (normally closed)
- Power supply: DC24V, 10W
- Orifice: Ø4.5mm
- Pressure rating: Max 3 bar / 43 PSI
