The Story

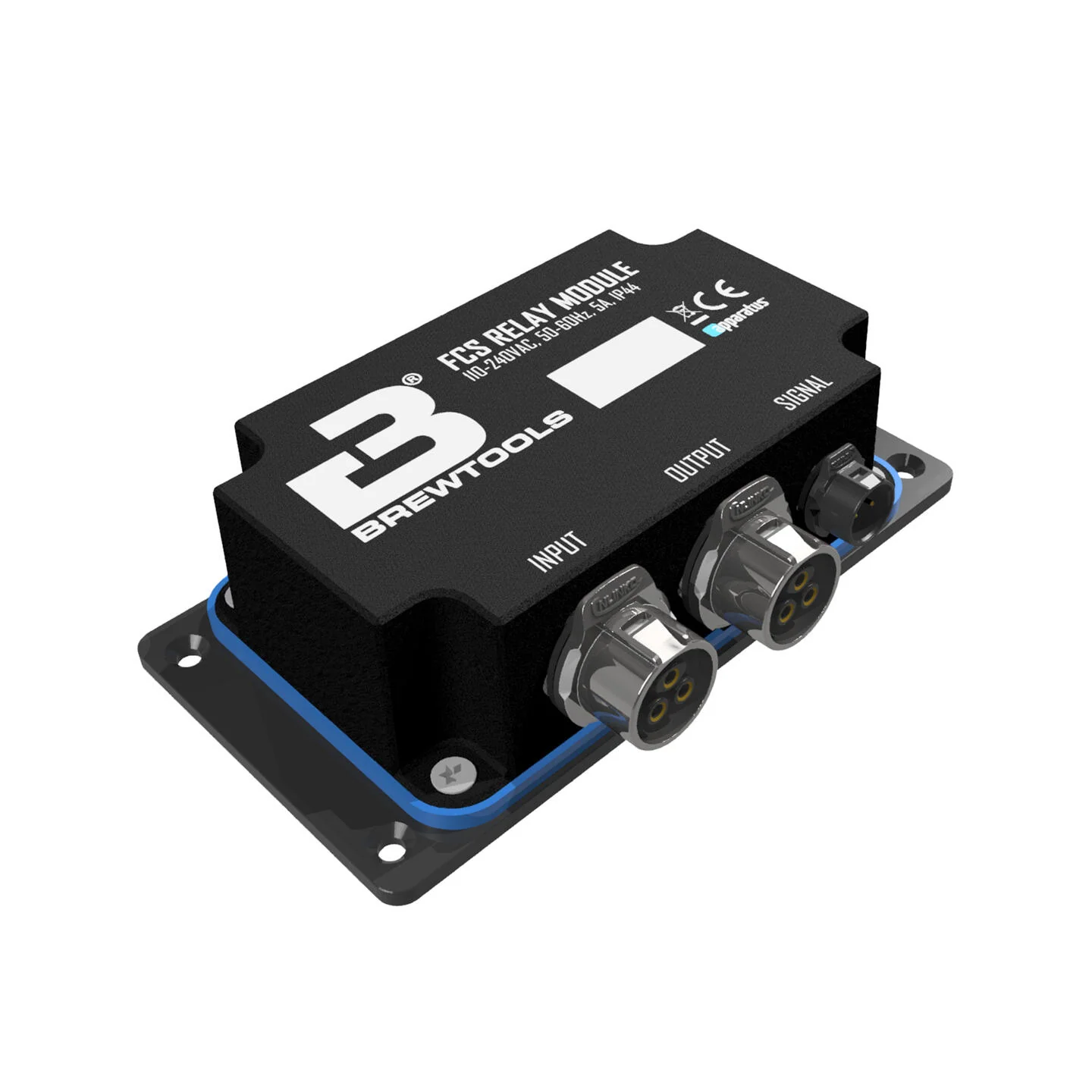

Relay Module for use with FCS. Specifically designed for small heating elements.
Control signal is 5V and the devices measures current draw.
The module has a 2-pole relay and several protective circuits for noise, over voltage etc.
For maximum safety, the device also has one fuse per phase.
Specifications:
- 110-240V AC, Max 5A
- Power in: LP20 3-pin male
- Power out: LP20 3-pin female
- Signal: LP12 7-pin
- Fuse: 2x 5x20 6.3A Fast Blow
Installation:
4 screw holes with 5mm diameter. Designed for countersunk screws.
