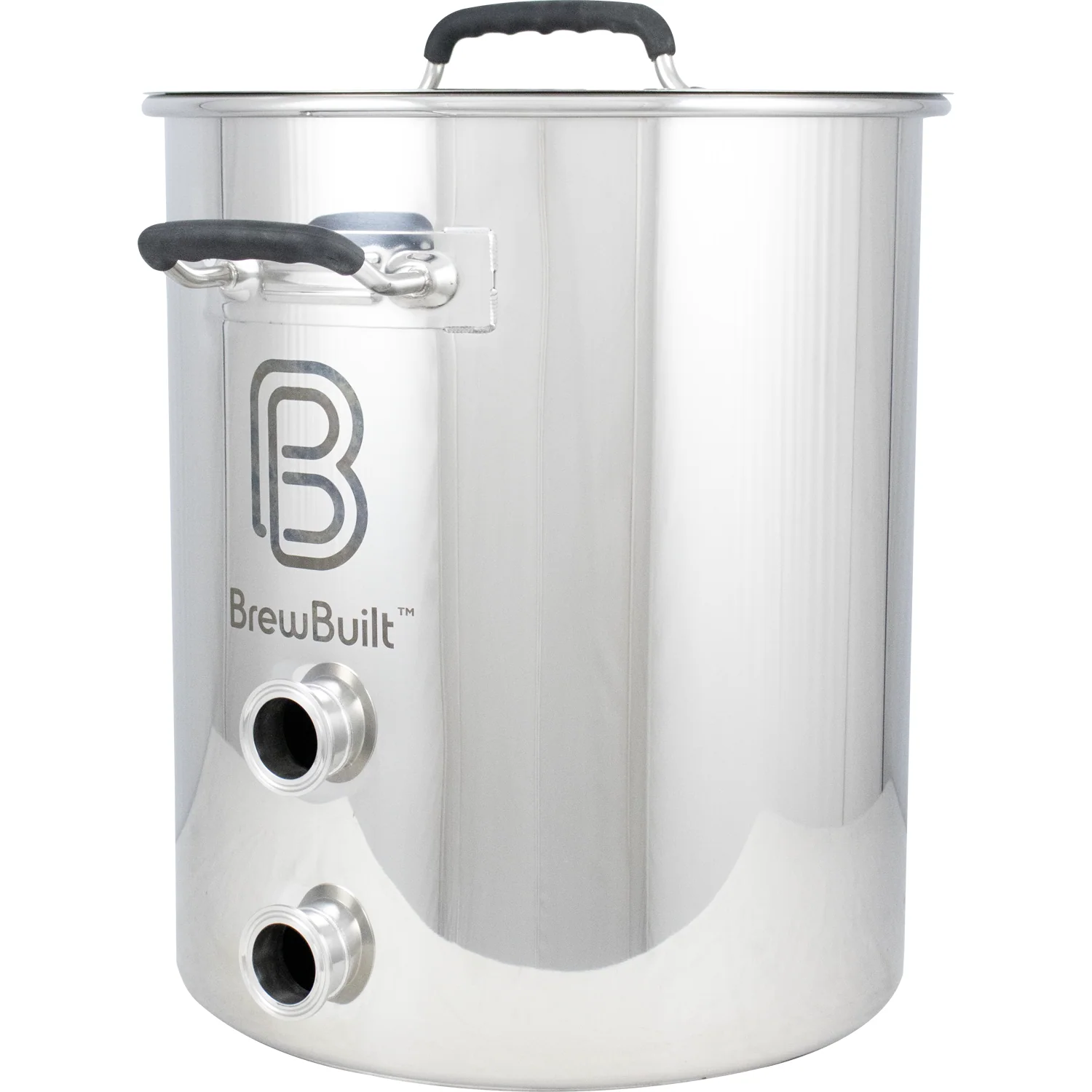

Welded 1.5" tri-clamp ports for a lifetime of leak-free use
Front & back positioned handles reduce the space needed to arrange multiple kettles in a horizontal system
304 stainless steel construction with mirror polish finish

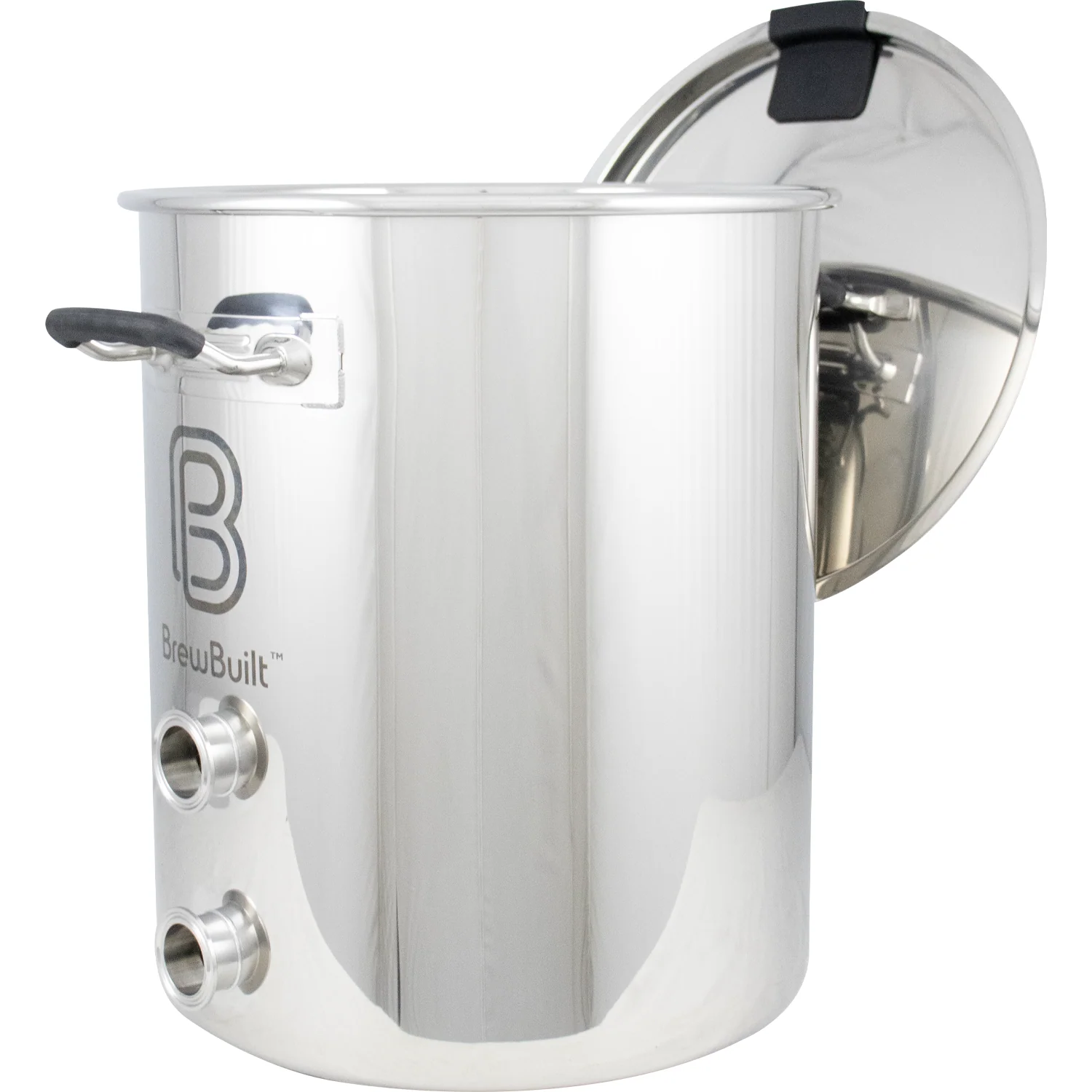

Notched lid provides cover while not interfering with immersion chillers, hop bags, or other accessories
Choose from Boil Kettle, Hot Liquor Tank or Mash Tun configurations
- The Boil Kettle comes without fittings
- The Hot Liquor Tank includes a Kettle Maximizer and Thermometer with 2" Probe
- The Mash Tun includes a False Bottom Kit and Thermometer with 6" Probe
- Add your preferred Valve Hardware Pack below under You Might Also Need or purchase your own valve & fittings separately

Designed for Brewing. Built to Last.
BrewBuilt brew kettles are made from 304 stainless steel and offer an unparalleled mix of features for the price. At the very top of the list are two welded-in place tri-clamp couplers that offer a lifetime of leak free use. As you can imagine, welding in a coupler costs more than punching a hole and using a gasketed (i.e. weld-less) fitting. Welded fittings offer a permanent connection that to us is worth every penny. The second unique feature that we absolutely love about these brew kettles is the notched lid with silicone plug. This notch allows you so much flexibility; you can use an immersion chiller, one of our Ultimate Sparge Arms for mashing, tie off hop bags, take a temp reading during cooling, or whatever else we all can dream up.

Our new T.C. kettles were designed to keep pace with the ever-evolving world of brewing technology. Tri-clamp fittings are standard fare in professional breweries, and they’ve been widely adopted in homebrewing as T.C. fermenters and pumps become more affordable and widely available. Tri-clamp fittings, also known as Tri-clover, allow you to make a sanitary connection that is free of nooks and crannies for contaminants to take hold. They are much easier to break down for cleaning compared to threaded connections, and they don’t require Teflon tape to make a watertight seal. T.C. fittings and accessories also give you the distinct advantage of being able to clean in place (CIP), so you don’t need to break down your entire system after every brew day.

Configurations

The base boil kettle comes without fittings so you can modify it the specific tri-clamp accessories that best suit your needs. Add one of the optional Brewing Kettle Valve Packs above which include your choice of valve and all the hardware you'll need to connect 1/2" ID transfer tubing, as well as an end cap to seal the top port if a thermometer or other accessory is not in place.

The Hot Liquor Tank includes the base kettle plus a kettle maximizer for the bottom port and thermometer with 2" probe for the top port. Clamps and gaskets are included to attach the tri-clamp kettle maximizer and the thermometer.

The Mash Tun includes the base kettle plus a false bottom kit for the bottom port and thermometer with 6" probe for the top port. Clamps and gaskets are included to attach the tri-clamp false bottom maximizer and the thermometer.

Kettles do not come with a valve or additional fittings for the bottom port as standard. Add one of our pre-configured Valve Packs or purchase your preferred valve and fittings separately.

This Brew Kettle has a lot to offer...
Some other features we dig include the internal volume markers from the bottom to the top - so handy for instant reads. The silicone sleeved handles on the kettle and the lid are a cool feature to protect your hands. The tri-clad bottom with a 4mm core of aluminum sandwiched between two layers of stainless steel offers even heat distribution during the boil and also makes it a perfect choice for anyone wanting to use an induction burner.

Beefy 304 Stainless
These kettles are made from 304 grade stainless. That means you will have less corrosion issues than with a kettle made from lower grade 201 type stainless. We put these kettles through a corrosive salt water test in the MoreBeer! shop and they passed with flying colors. We also made sure the rivets and riveted handles were also made of stainless steel for a long term, trouble free life. The 10 and 15 gallon size are made from 1.0mm thick stainless steel. The 20, 30 and 50 gallon size are made with 1.2mm stainless - that's pretty thick stuff - and you will know it when you pick one up.

Mirror Polish Finish
The mirror polish finish isn’t just for making your Instagram feed pop! This extra slick finish is much easier to clean and sanitize than a standard brushed stainless kettle. Hop trub and other organic solids left behind after a brew day will have a hard time clinging to the interior surface and scrub away with ease.

Size Ratios and Stuff
All the BrewBuilt kettles follow the recent trend to a 1.2:1 ratio where the height is 1.2 times the diameter. This is a proven commercial ratio that has been adopted in homebrewing to achieve a more consistent 10% evaporation rate during the boil. We do like this ratio for boiling. For Mashing we would prefer a little bit shallower but that is a small compromise. Dimensions for a hot-liquor tank, if you are thinking brewing system down the road, are irrelevant as any ratio kettle will do.

Features:

Two welded T.C. couplers for a lifetime of leak free use
Front & back oriented handles with silicone coated handles for heat protection
Notched lid with silicone plug for flexibility
304 stainless steel construction for longevity
1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting
4mm Tri-Clad Aluminum bottom sandwiched between two layers of stainless steel for no scorching
Internally etched volume markers from top to bottom for easy reading
1.2:1 Ratio is optimal for boiling evaporation rate
Lid is designed to conveniently hang from a handle
Stainless handles with stainless rivets for secure lifting

Size	Kettle ID (in.)	Height (in.)
10 Gallon	13.78	16.54
15 Gallon	15.75	18.90
20 Gallon	17.72	21.26
30 Gallon	19.69	23.62
50 Gallon	23.62	28.30
